Attwood Gas Spring Table

Attwood Gas Spring Table

(39 products)

About Gas Spring Sizes

If the new Attwood SpringLift gas springs vary slightly from your old ones, it probably won't affect the outcome of your project.

If you are not replacing an old spring, but working on an entirely new project, you may just prefer to see a list of all the Attwood gas springs that are available and plan your design accordingly.

All Available Attwood Springlift Gas Springs

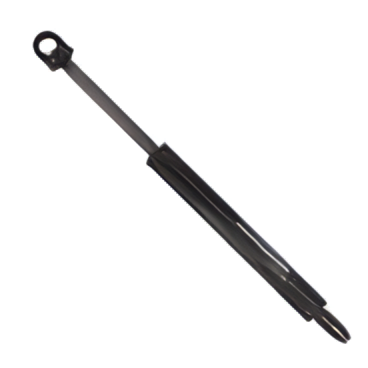

Blade Connector Attwood Springlift Gas Springs
Extended Length Compressed Length Stroke Blade Size Click to Choose
6.50 inch 4.90 inch 1.60 inch 6.33mm Series 4
10.00 inch 7.00 inch 3.00 inch 10mm Series 1
15.00 inch 9.50 inch 5.50 inch 10mm Series 2
20.00 inch 12.00 inch 8.00 inch 10mm Series 3

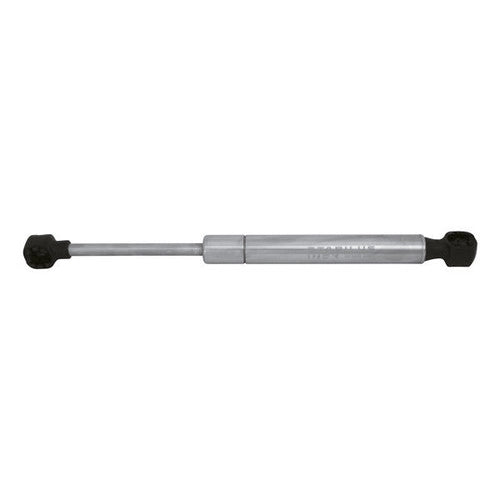

Socket Connector Attwood Springlift Gas Springs
Extended Length Compressed Length Stroke Socket Size Click to Choose
7.50 inch 5.25 inch 2.25 inch 10mm Series 11 or Series 31
10.00 inch 7.00 inch  3.00 inch 10mm Series 10 or Series 30
10.50 inch 7.50 inch 3.00 inch 10mm Series 32
12.04 inch 8.46 inch 3.58 inch 10mm Series 15 or Series 35
15.00 inch 9.50 inch 5.50 inch 10mm Series 13 or Series 33
17.20 inch 10.20 inch 7.00 inch 10mm Series 16 or Series 36

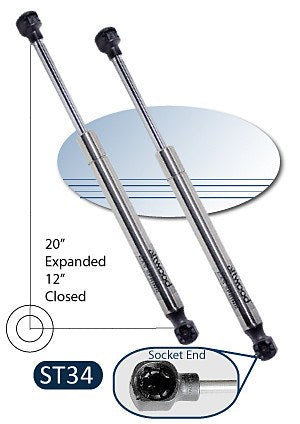

20.00 inch 12.00 inch 8.00 inch 10mm Series 14 or Series 34
20.20 inch 12.30 inch 7.90 inch 13mm Series 20
23.00 inch 13.12 inch 9.87 inch 10mm Series 38
26.30 inch 16.10 inch 10.20 inch 10mm Series 37 or Series 25
26.97 inch 15.20 inch 11.77 inch 10mm Series 26
28.00 inch 16.50 inch 11.50 inch 10mm Series 27
30.91 inch 17.13 inch 13.78 inch 10mm Series 28
36.30 inch 21.10 inch 15.20 inch 13mm Series 29
