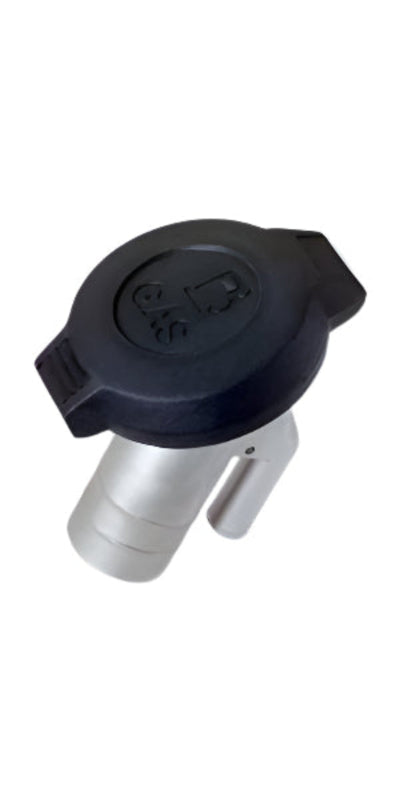

Replacement Flip Top Gas Fill (Cap Only)

Please Note Gas Cap Only- Entire Deck Fill is Obsolete

Angled Attwood gas fill with vent eliminates the need for separate tank vent. Includes two-piece plastic cap. Neck includes built-in splash guard and is cast aluminum, and is also available in Stainless steel. Allows mounting at 90° intervals, independent of the fill neck angle.

For 1.5" I.D. fuel hose and 5/8" I.D. vent hose. Neck opening accepts fuel nozzles up to 1" O.D. Above-deck dimensions: 4" long x 3.25" wide x 5/16" high. Below-deck depth: 3.5". Mounting flange has four holes for #8 fasteners. Requires a bonding wire to prevent sparking when nozzle is inserted. Cap is not watertight when closed.
